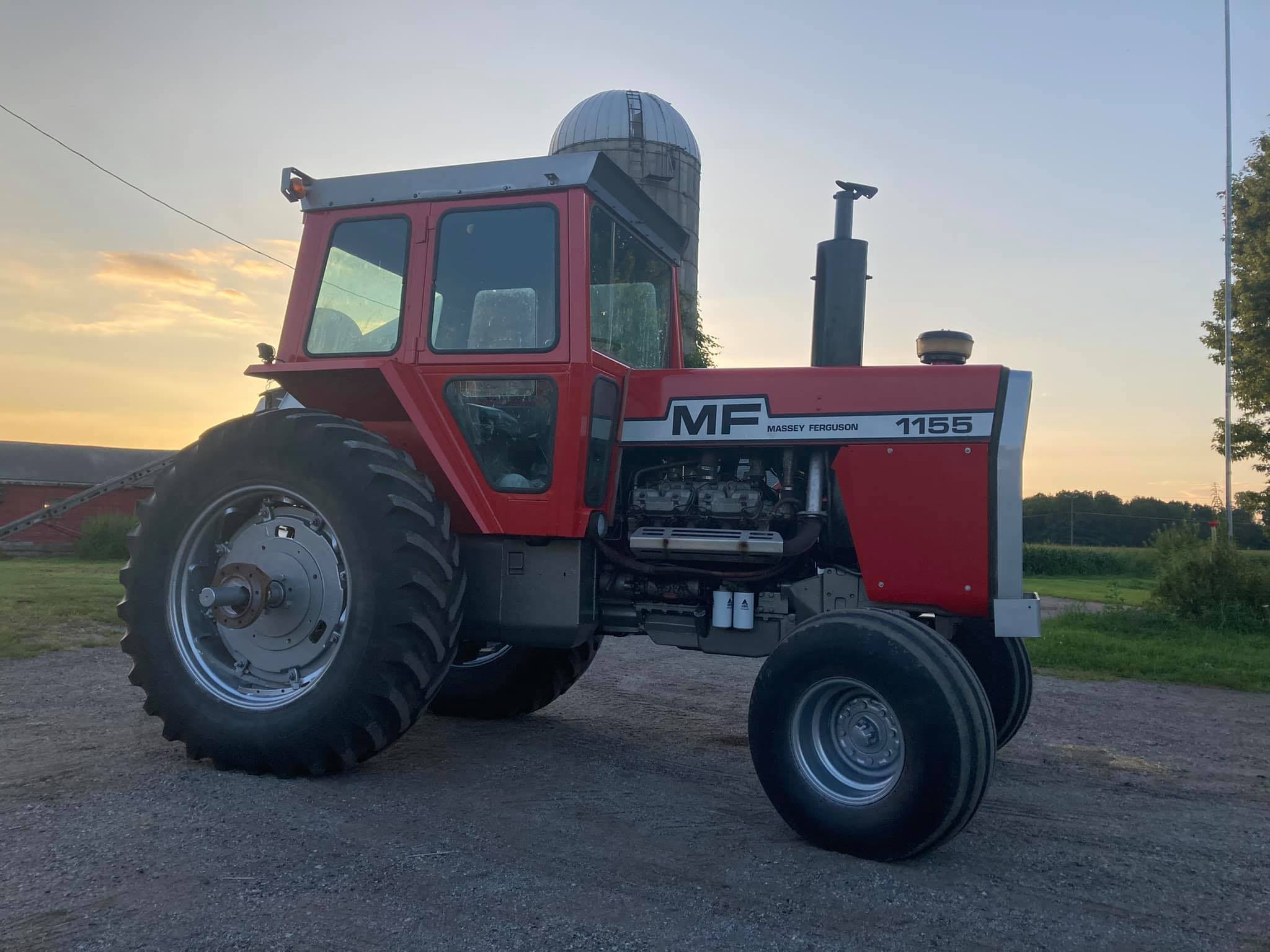

FS25 Massey Ferguson 1155

The Massey Ferguson 1155 is a robust row-crop tractor produced between 1973 and 1978, designed for heavy-duty agricultural tasks. Here's an overview of its key specifications and features:

 Engine & Performance

• Engine: Perkins AV8.540, 8.9L (540 ci) 8-cylinder diesel

• Power Output:

  • Drawbar (claimed): 117 hp (87.2 kW)

  • PTO (claimed): 140 hp (104.4 kW)

  • Drawbar (tested): 117.8 hp (87.8 kW)

  • PTO (tested): 140.97 hp (105.1 kW)

• Fuel Tank Capacity: 55 gallons (208.2 L)

• Hydraulic System: Closed center, 22 gallons (83.3 L), 2100 psi (144.8 bar)

• Hydraulic Pump Flow: 20 gpm (75.7 lpm) (agro-specs.com, manytractors.com)

 Transmission & Drivetrain

• Transmission Options:

  • 12-speed two-speed power shift

  • 8-speed gear

• Drive Type: Two-wheel drive (2WD)

• Brakes: Hydraulic wet disc

• Steering: Power steering(TractorData, agro-specs.com, TractorData)

Dimensions & Weight

• Wheelbase: 109 inches (276 cm)

• Length: 180 inches (457 cm)

• Height (with cab): 113.5 inches (288 cm)

• Weight:

  • Shipping: 11,750 lbs (5,329 kg)

  • Operating: 14,905 lbs (6,760 kg)

  • Ballasted: 20,460 lbs (9,280 kg)

• Tire Sizes:

  • Front: 14L-16

  • Rear: 18.4-38(agro-specs.com, manytractors.com, TractorData, TractorData)

 Hitch & PTO

• Rear Hitch: Type II/III

• Control: Position and draft control

• PTO:

  • Type: Independent

  • Speeds: 540/1000 RPM

  • Engine RPM: 540@2000, 1000@2000 (TractorData, TractorData, AllMachines)

 Common Issues & Maintenance Tips

Owners have reported that the Massey Ferguson 1155 is generally reliable, with a durable engine and transmission. However, some common issues include:(TractorData)

• Final Drive Wear: The planetary drive system, shared with the 1105 model, may experience wear under heavy use. Regular maintenance and timely replacement of components can mitigate this issue.

• Charge Pump Failure: A failing charge pump can lead to hydraulic system issues. It's advisable to monitor hydraulic performance and address any irregularities promptly.(Yesterday's Tractors Forums)

 Additional Information

• Original Price (1978): $25,000

• Cab: Standard

• Electrical System: 12V with alternator(TractorData, TractorData)

For more detailed specifications and historical data, you can refer to the TractorData.com Massey Ferguson 1155 page.

If you're considering purchasing a Massey Ferguson 1155 or need further information on its maintenance and parts, feel free to ask!
